Manufacturer: Alfa Laval
Product code: 5036
Item number: 9634039976
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
HS Code:73072390
Delivery time:To be confirmed
  • Range: Tees

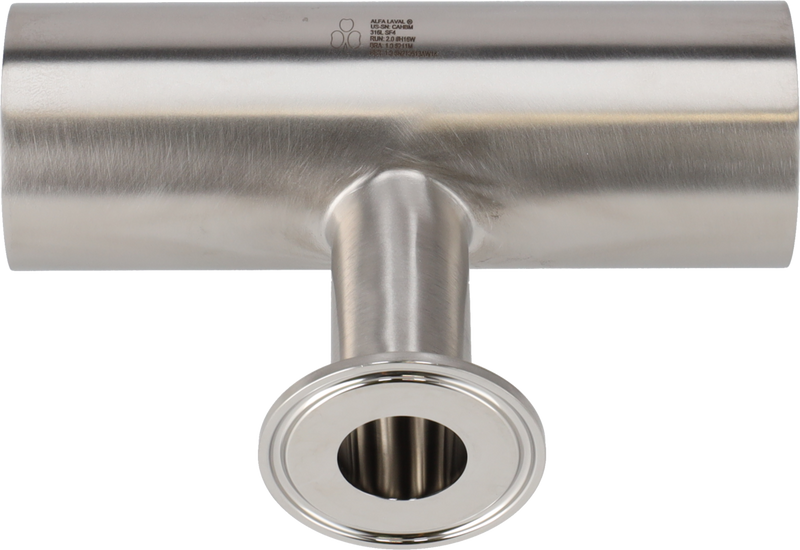

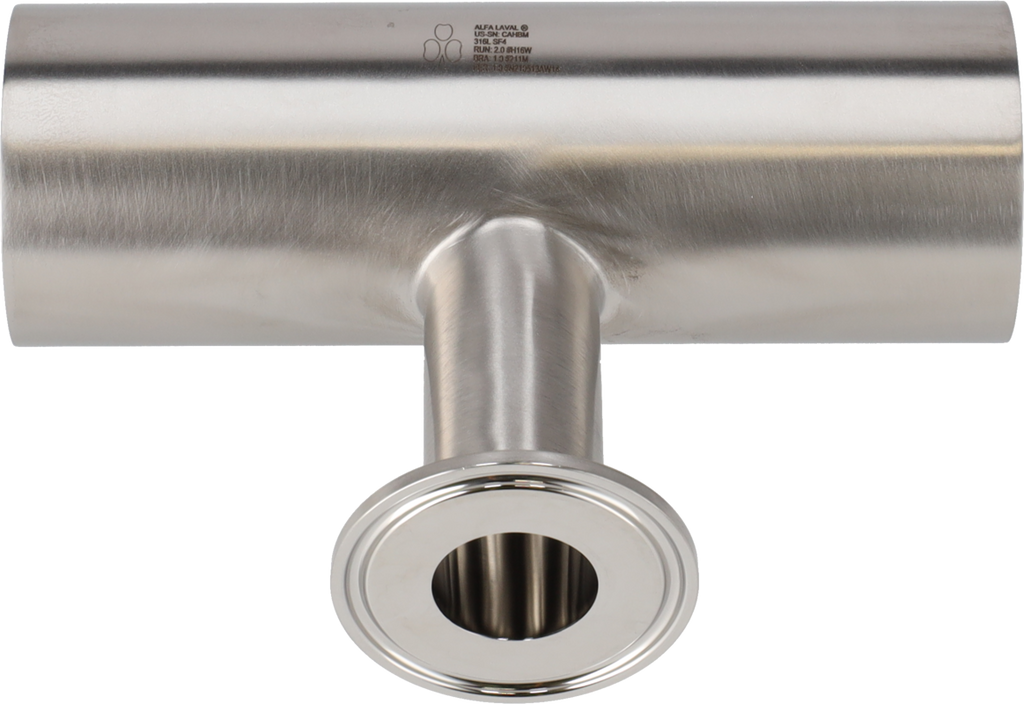

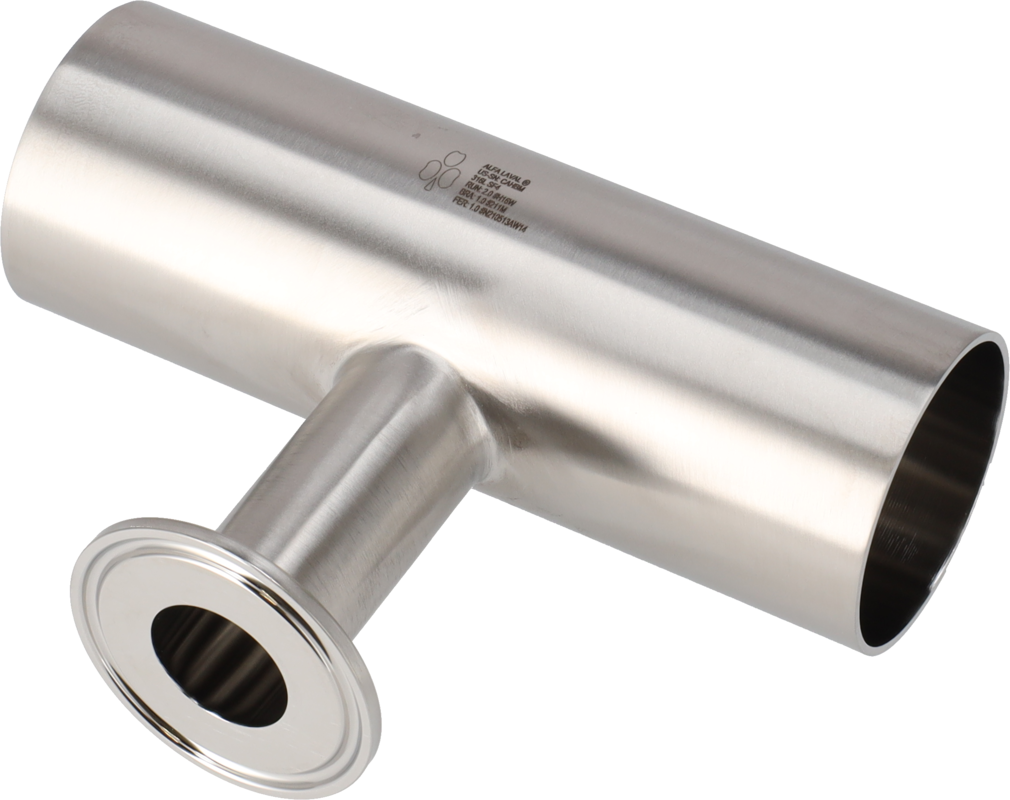

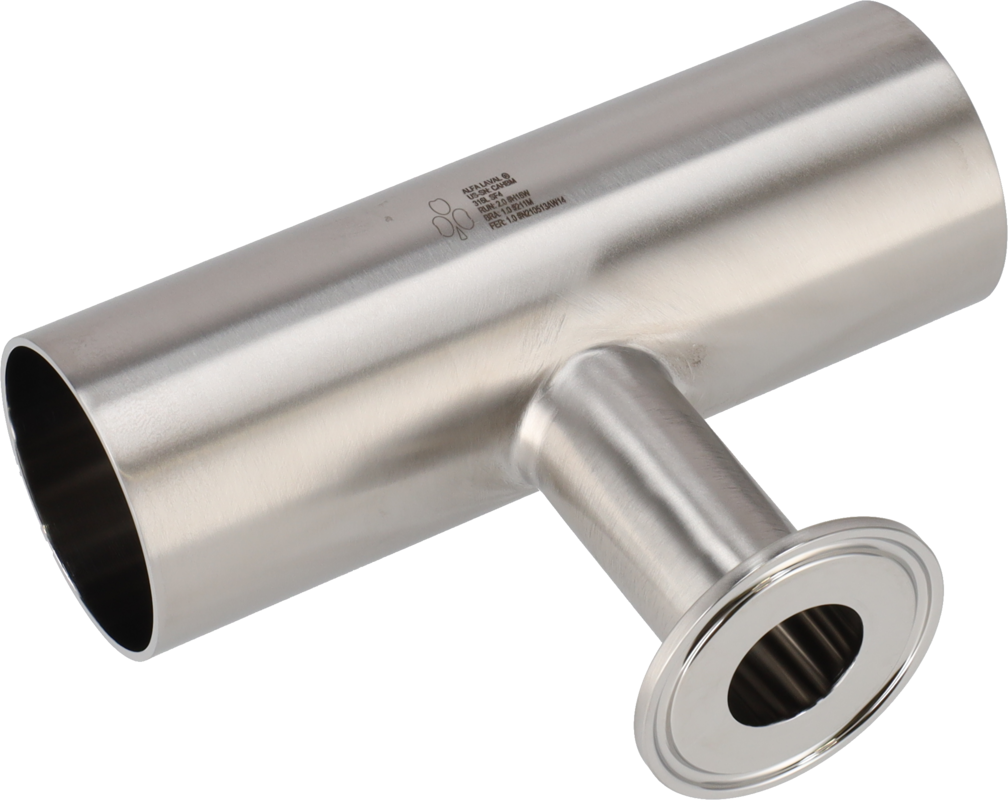

  • Product Model: Tri-Clover BPE Reducing Tees
  • Size: 2.5"
  • Second Size: 1"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Weld and TriClamp and Weld
  • Standard: UltraPure
  • Design: B7RWWM
  • Item Weight: 0.57
  • Country of Origin: China
Price:
Login to view price

Documentation

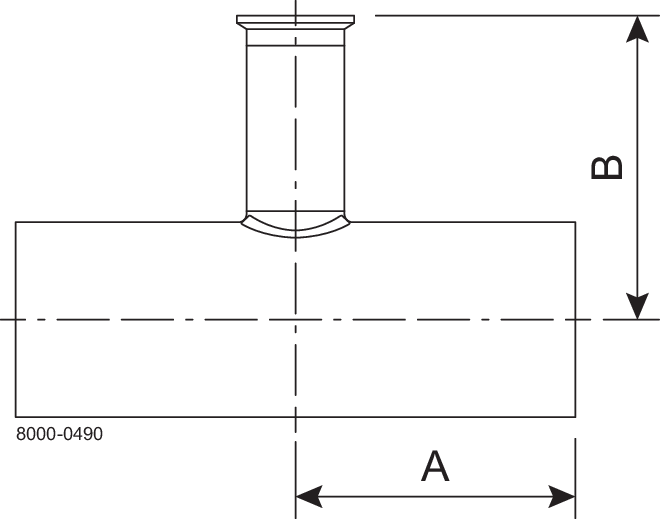

A: 79.40
B: 85.70
OD/ID x t: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
OD2: 25.4
